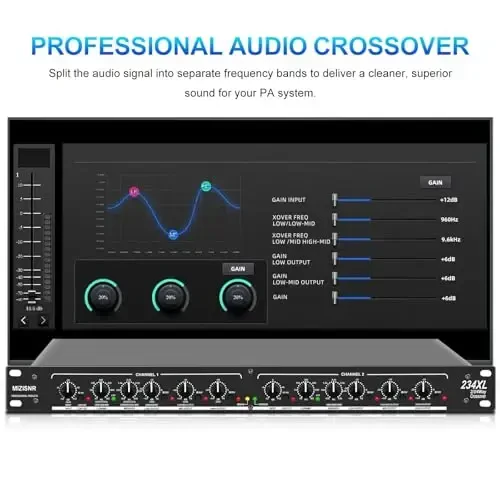

MIZISNR Professional Crossover 2/3/4 Way PA Studio

Product Description

The MIZISNR Professional 2/3 Way Stereo/4 Way Mono Crossover is a high-performance audio processing device designed to maximize the potential of your sound systems. Ideal especially for professional PA systems, studio setups, and live sound applications, this crossover precisely separates the audio signal into different frequency bands, ensuring optimum signal delivery to your speakers. It works in full compatibility with various speaker configurations, including subwoofers. The main advantage of using a crossover is to ensure that each speaker driver (tweeter, midrange, woofer, subwoofer) plays only the frequency range it was designed for. This improves sound quality, enhances clarity and detail, and most importantly, extends the lifespan of the drivers by preventing unnecessary strain. The MIZISNR Crossover offers the user three different operating modes: Stereo 2-Way, Stereo 3-Way, or Mono 4-Way. In Stereo 2-Way mode, the left and right stereo signals are separated into bass/subwoofer and treble frequencies. In Stereo 3-Way mode, the signals are divided into three bands: bass, midrange, and treble, allowing for a more complex and optimized stereo setup. In Mono 4-Way mode, it typically takes a single mono signal and divides it into four different bands such as bass, low-mid, upper-mid, and treble, offering an ideal solution for multi-driver mono speaker systems or line arrays. This versatility makes the device adaptable to different needs and system sizes. It is an indispensable tool for professional sound engineers and system installers. At the heart of the MIZISNR Crossover are high-quality filter circuits that separate audio signals cleanly and precisely. Steep slope filters, typically 24 dB/Octave Linkwitz-Riley filters, are used, which ensure minimum overlap and phase error at the crossover points. Separate level controls for each output band allow for precise level matching of speakers with different sensitivities. Phase reverse switches help resolve potential phase issues between speakers in different positions or with different acoustic designs, resulting in a tighter and more effective sound, especially in bass frequencies. Indicators on the front panel (signal presence, clip level) allow the sound engineer to quickly monitor the system status. Professional XLR input and output connectors provide reliable and balanced signal transmission, minimizing noise and preserving signal integrity even over long cable runs. The robust and durable rack-mountable metal chassis is designed to withstand the rigors of stage use or the demands of a studio environment. It is easy to set up and use, yet the level of control and precision it offers is suitable for professional applications. The MIZISNR Professional Crossover is an ideal choice for getting the best performance from your sound system, protecting your speakers, and providing listeners with a flawless audio experience. Subwoofer integration is one of the strongest features of this device; with adjustable crossover points, you can perfectly tune the transition between your main speakers and your subwoofer, achieving powerful and clear bass performance. This device is an investment that will significantly improve the quality of your sound system.

Product Specifications

• High-performance crossover design for professional sound quality.
• Versatile use: Stereo 2-Way, Stereo 3-Way, and Mono 4-Way operating modes.

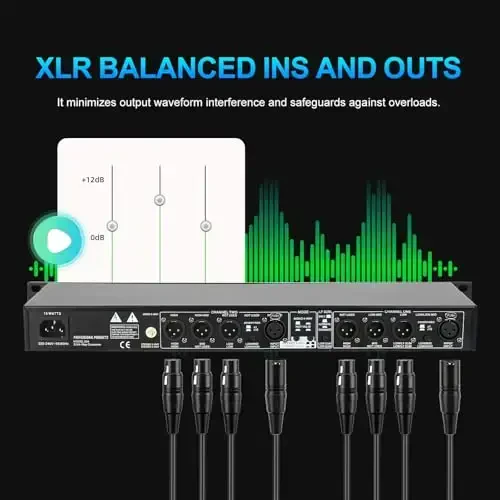

• Professional XLR connections for all inputs and outputs.

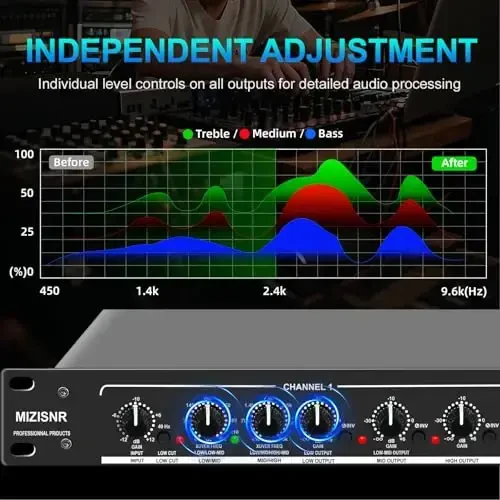

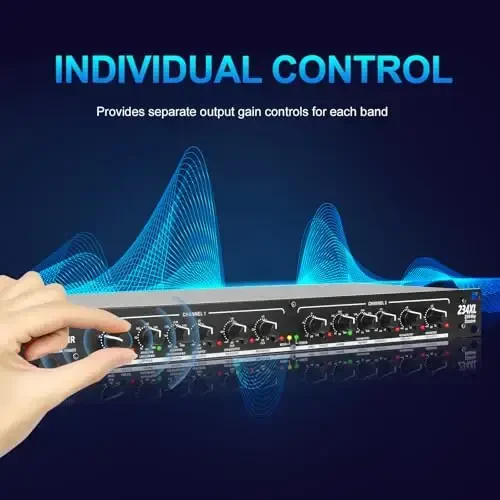

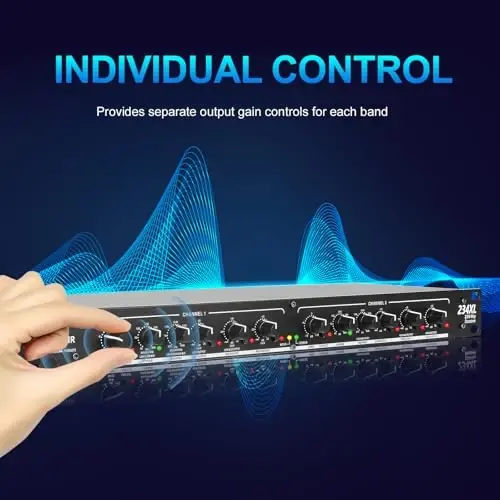

• Precise gain adjustment with independent level control for each output band.
• Adjustable crossover frequencies for system-specific optimization.
• Sharp frequency separation with typically 24 dB/Octave steep slope filters (Linkwitz-Riley).

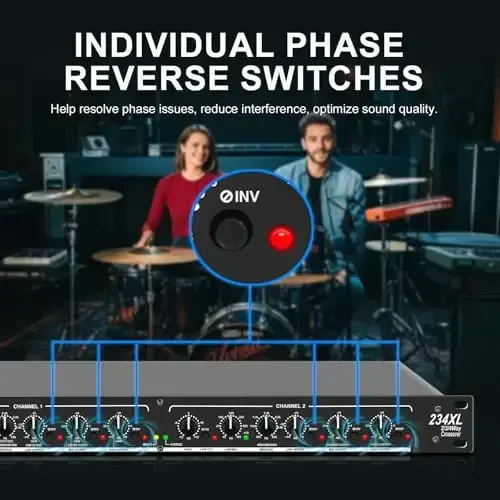

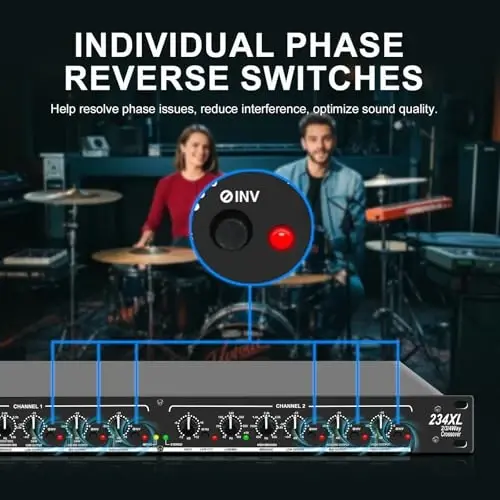

• Speaker phase alignment with phase reverse switches.
• Low Cut filter.
• Input and output signal, clip, and mode indicators.
• Compatibility with various speaker configurations, including subwoofers.

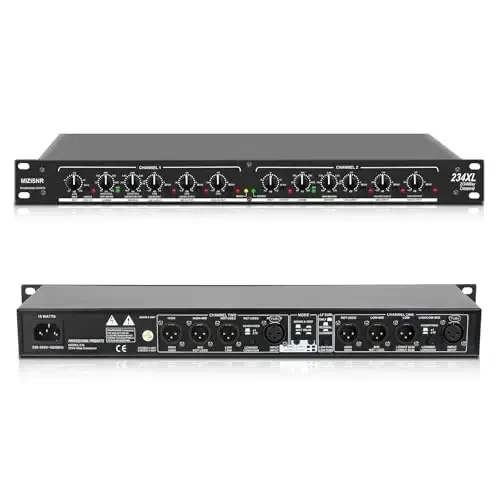

• Robust, durable, and standard 19-inch rack-mountable metal chassis.
• Ideal for professional PA systems, studios, and live sound applications.

Additional Information

The MIZISNR Professional Crossover box contents include the device itself, a power cable, and a user manual. The device can be easily mounted in a standard 19-inch rack slot and occupies 1U of rack space. The power requirement is a wide range AC 100-240V, 50/60Hz. Product dimensions (WxHxD) are typically around 482mm x 44mm x 155mm. The weight is approximately between 2-3 kg, offering a good balance between portability and durability. It is recommended to mount or place the device in a well-ventilated area for optimum temperature operation and longevity. When installing or making adjustments, ensure all connections are properly made and the device power is off. It is advisable to refer to the user manual included with the product for detailed technical specifications, connection diagrams, and adjustment guides. The product is manufactured according to high quality standards and is covered by a standard manufacturer warranty against possible manufacturing defects. The MIZISNR Professional Crossover is an essential component designed to enhance the performance and reliability of your sound system.
